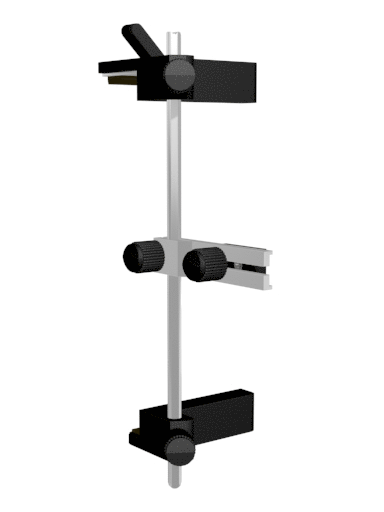

The scanning head support TVU 7.2 was designed for on site meter testing together with the photo-electric scanning head SH 11.

The PSI 10 is a single-phase, computer controlled current source up to 120 A for use in meter test systems and in laboratories.

Key features of the PSI 10
• Compact electronic current source (single phase)
• Controlled by PC via optical interface RS 232 C
• High accuracy and stability of the adjusted load independent of
supply voltage deviations.
• Power efficiency > 85 %
• Current range: 1 mA to 120 A
• Output power: 1000 VA, 2000 VA, 4000 VA
• Generation of harmonics

Options
• CAMCAL software for stationary systems

The PSI 10 / 200 A is a single-phase, computer controlled current source up to 200 A for use in meter test systems and in laboratories.

Key features of the PSI 10
• Compact electronic current source (single phase)
• Controlled by PC via optical interface RS 232 C
• High accuracy and stability of the adjusted load independent of
supply voltage deviations.
• Power efficiency > 85 %
• Current range: 1 mA to 200 A
• Output power: 1000 VA, 2000 VA, 4000 VA
• Generation of harmonics

Options
• CAMCAL software for stationary systems

The PSP 10 is a single-phase, computer controlled voltage and current source for use in meter test systems and in laboratories.

Key features of the PSP 10
• Compact electronic voltage and current source (single- phase)
• Controlled by PC via serial interface RS 232 C
• Phantom load generation for active and reactive power meters
• High accuracy and stability of the adjusted load independent of supply voltage deviations
• Power efficiency > 85 %
• Voltage and current range:
Voltage: 30 V up to 300 V
Current: 1 mA up to 120 A
• Output power:
Voltage: 800 VA
Current: 1200 VA

Options
• Software module for fully automatic measurements
• Generation of harmonics
• Generation of ripple control signals

The PSP System is a single- or three-phase electronic voltage- and current power source used in the testing of electricity meters or other devices.

Principal Characteristics
• Voltage and current ranges:
Voltage: 30 V up to 300 V
Current: 1 mA up to 120 A
• Output power:
Voltage: 800 VA
Current: 1200 VA
• Power efficiency: > 85 %
• Operation of the PSP System over RS 232 C serial line interface

Further Characteristics
The generators create the nominal values for the amplifiers with extremely high accuracy and stability. The amplifiers use the pulsewidth modulation principle, this implies a high working efficiency and therefore very low heat losses. The construction of the PSP System is very compact.

The PSU 10 is a single-phase, computer controlled voltage source for use in meter test systems and in laboratories.

Key features of the PSU 10
• Compact electronic voltage source (single phase)
• Controlled by PC via optical interface RS 232 C
• High accuracy and stability of the adjusted load independent
of supply voltage deviations.
• Power efficiency > 85 %
• Voltage range: 30 V to 300 V
• Output power: 1000 VA, 2000 VA, 4000 VA
• Generation of harmonics
• Generation of ripple control signals

Options
• CAMCAL software for stationary systems

The SPE 120.3 is a three-phase, computer controlled voltage and current source with 300 or 600 VA for use in meter test systems and in laboratories.

Key features of the SPE 120.3
• Compact electronic current and voltage source (three- phase)
• Controlled by PC via serial interface RS 232C
• Phantom load generation for three-wire and four-wire active and reactive power meters.
• High accuracy and stability of the adjusted load independent of supply voltage deviations.
• Power efficiency > 85 %
• Current and voltage range: 1 mA to 120 A, 30 V to 300 V
• Output power: 300 VA per phase or 600 VA per phase
Options
• Operation keyboard for manual operation
• Software module for fully automatic measuring
• Generation of harmonics
• Generation of ripple control

The SPE 120.3 / 200 A is a three-phase, computer controlled voltage and current source with 600 VA for use in meter test systems and in laboratories.
Key points of the SPE 120.3
• Compact electronic current and voltage source (three phase)
• Controlled by P.C. via serial interface RS 232
• Phantom load generation for three-wire and four-wire active and reactive power meters.
• High accuracy and stability of the adjusted load independent of supply voltage deviations.
• Power efficiency > 85 %
• Current and voltage range:
1 mA to 200 A, 30 V to 300 V
• Output power: 600 VA per phase
Options
• Operation keyboard for manual operations
• Software module for fully automatic measuring
• Generation of harmonics
• Generation of ripple control

The SPE System is a three-phase electronic voltage- and current power source used in the testing of electricity meters or other devices.
The SPE System is an electronic voltage- and current power source and a meter supply unit for testing electricity meters or for testing other devices which use current or voltage.

Principal Characteristics
• Voltage and current ranges:
Voltage: 30 V up to 300 V
Current: 1 mA up to 120 A
(other values on demand)
• Output power: 300 VA or 600 VA per phase
• Power efficiency: > 85 %
• Operation of the SPE System over RS 232 C serial line interface

Further Characteristics
The generators create the nominal values for the amplifiers with extremely high accuracy and stability. The amplifiers use the pulsewidth modulation principle, this implies a high working efficiency and therefore very low heat losses. The construction of the SPE System is very compact.
