·Individual measurement of Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4) and Ethane (C2H6) Moisture in oil (H2O) measurement
·Special design for offshore applications:
·Housing without window painted in C5M
·Back plate with cable glands (chrome-nickel steel, IP 68,corrosion-free and acid-resistant)
·Back plate, oil entrance and housing screws made of stainless steel V4A
·Easy to mount on a transformer valve (G 1½” DIN ISO 228-1 or 1½” NPT ANSI B 1.20.1)
·Installation on the operational transformer without any operational interruption
·Advanced software (on the unit and via PC)
·Maintenance free system
·Communication interfaces ETHERNET 10/100 Mbit/s / RJ 45 or fibre-optical / SC Duplex) and RS 485 to support MODBUS®RTU/ASCII, MODBUS®TCP, DNP3 proprietary communication and IEC 61850 protocols
· Optional on-board GSM or analog modem for remote access
· Optional DNP3 serial modem for SCADA connection
· Optional IEC 61850 modem for SCADA connection
· Optional HV and LV bushing sensors for HV and LV bushing monitoring applications via communication interface

Product Information
·Multi-Gas-in-Oil Analysis System with Transformer Monitoring Functions.

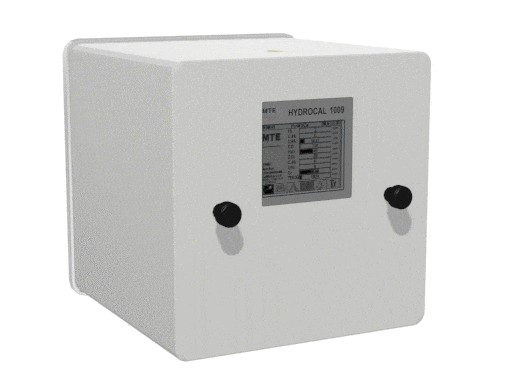

·The Hydrocal 1009 is a permanently installed multi-gas-in-oil analysis system with transformer monitoring functions.It individually measures, Moisture in Oil (H2O) and the key gases Hydrogen (H2),Carbon Monoxide (CO),Carbon Dioxide (CO2),Methane (CH4),Acetylene (C2H2),Ethylene (C2H4),Ethane (C2H6) and Oxygen (O2) dissolved in transformer oil.

Key Advantages:
·Individual measurement of Hydrogen (H2), Carbon Monoxide (CO),Carbon Dioxide (CO2),Methane (CH4),Acetylene (C2H2),Ethylene (C2H4),Ethane (C2H6) and Oxygen (O2).
·Moisture in Oil (H2O) measurement.
·Easy to mount on a transformer valve.
·Installation on the operational transformer without any operational interruption.
·Advanced software (on the unit and via PC).
·Maintenance free system.
·Communication interfaces ETHERNET 10/100 Mbit/s (copper-wired /RJ 45 or fibre-optical /SC Duplex) and RS 485 to support MODBUS ® RTU/ASCII, MODBUS®TCP,DNP3 proprietary communication and IEC 61850 protocols.
·Optional on-board GSM or analog modem for remote access.
·Optional DNP3 serial modem for SCADA connection.
·Optional IEC 61850 modem for SCADA connection.
·Optional HV and LV bushing sensors for HV and LV bushing monitoring applications via communication interface.

·Individual measurement of Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6) and Oxygen (O2).
·Moisture in Oil (H2O) measurement.
·Special design for offshore applications.
·Housing without window painted in C5M.
·Back plate with cable glands (chrome-nickel steel, IP 68,corrosion-free and acid-resistant).
·Back plate, oil entrance and housing screws made of stainless.
·Easy to mount on a transformer valve (G 1½” DIN ISO 228-1 or 1½” NPT ANSI B 1.20.1).
·Installation on the operational transformer without any operational interruption.
·Advanced software (on the unit and via PC).
·Maintenance free system.
·Communication interfaces ETHERNET 10/100 Mbit/s (copperwired / RJ 45 or fibre-optical / SC Duplex) and RS 485 to support MODBUS®RTU/ASCII, MODBUS TCP, DNP3 and IEC 61850 protocols.
·Optional on-board GSM or analog modem for remote access.
·Optional DNP3 serial modem for SCADA connection.
·Optional IEC 61850 modem for SCADA connection.
·Optional HV and LV bushing sensors for HV and LV bushing monitoring applications via communication interface.

·Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2),Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane(C2H6) and Oxygen (O2) Moisture-in-oil (H2O) measurement

·Communication interfaces ETHERNET 10/100 Mbit/s / RJ 45 or fibre-optical / SC Duplex) and RS 485 to support MODBUS®RTU/ASCII, MODBUS TCP

·Optional 2G/3G modem with external adhesive antenna

·Optional IEC 61850 modem for SCADA connection

·Individual measurement of Hydrogen (H2), Carbon Monoxide(CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2),Ethylene (C2H4), Ethane (C2H6), Oxygen (O2) and Nitrogen (N2 )
·Moisture in Oil (H2O) measurement
·Easy to mount on a transformer valve (G 1½” DIN ISO 228-1 or 1½” NPT ANSI B 1.20.1)
·Installation on the operational transformer without any operational interruption
·Advanced software (on the unit and via PC)
·Maintenance free system

Offshore version
·Communication interfaces ETHERNET 10/100 Mbit/s / RJ 45 or fibre-optical / SC Duplex) and RS 485 to support MODBUS®RTU/ASCII, MODBUS
·TCP, DNP3 proprietary communication and IEC 61850 protocols
·Optional on-board GSM or analog modem for remote access
·Optional DNP3 serial modem for SCADA connection
·Optional IEC 61850 modem for SCADA connection
·Optional HV and LV bushing sensors for HV and LV bushing monitoring applications via communication interface

·The HYDROCAL 1010-3 is designed formulti-gas-in-oil analysis
·This new wall mounted system allows for the individual measurement of Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Oxygen (O2) and Nitrogen (N2)d i s solved in transformer oil utilizing a sampling system that samples oil from each tank via three separate oil channels expertly engineered to provide negligible mixing of oil.
·As Hydrogen (H2) is involved in nearly every fault of the insulation system of power transformers and Carbon Monoxide (CO) is a signof an involvement of the cellulosic / paper insulation the presenceand increase of Acetylene (C2H2) and Ethylene (C2H4) further clas-sifies the nature of a fault as overheating, partial discharge or highenergy arcing. Oxygen (O2) can be a sign of excessive ageing or leakages.

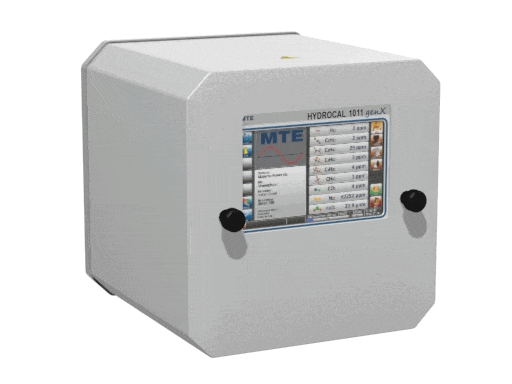

The new HYDROCAL 1011 genX is the first truly maintenance-free multigas online DGA solution combining proven near infrared (NIR) measuring technology with vacuum protected membrane extraction. As Hydrogen (H2) is involved in nearly every fault of the insulation system of power transformers and Carbon Monoxide (CO) is a sign of an involvement of the cellulosic / paper isolation the presence and increase of Acetylene (C2H2) further classifies the nature of a fault as overheating, partial discharge or high energy arcing.
The additional measurement of Ethylene (C2H4) and Methane (CH4) serves for further analysis, e.g. Duval triangle according IEC 60599.

Key Advantages
·Individual measurement of Hydrogen (H2), Carbon Dioxide (CO2), Carbon Monoxide (CO), Acetylene (C2H2), Methane (CH4) and Ethylene (C2H4), Ethane (C2H6), Moisture in Oil (H2O), Propane (C3H8), Oxygen (O2), Nitrojen (N2).
·Moisture in Oil (H2O) measurement.
·Easy to mount on a transformer valve (G 1½” DIN ISO 228-1 or 1½” NPT ANSI B 1.20.1).
·Easy to mount on the operating transformer without any operational interruption.
·Maintenance free system due to less movable parts.
·Advanced software (on the unit and via PC) with intuitive operation by 7” color TFT capacitive touchscreen, WLAN and Webserver operation from any smart phone, tablet or notebook PC.
·Communication interfaces ETHERNET 10/100 Mbit/s  / RJ 45 or fibre-optical / SC Duplex) and RS 485 to support MODBUS® RTU/ASCII, MODBUSTCP, DNP3, proprietary communication protocols and substation communication protocol IEC 61850.
·Optional external I/O module.

Individual measurement of hydrogen (H2), carbon monoxide(CO), carbon dioxide (CO2), methane (CH4), acetylene (C2H2),ethylene (C2H4), ethane (C2H6), oxygen (O2), nitrogen (N2) and propane (C3H8)
Moisture in oil (H2O) measurement
Maintenance-free near infrared measurement system with head-space gas extraction acc. IEC 60567
Operation by integrated 7” color TFT (800×480 pixel) touchscreen or via genX webserver from any smart phone, notepad or PC
Communication interfaces WiFi, USB or ETHERNET 10/100 Mbit/s
SD memory of test results, history and diagnostic data of power transformers and oil-filled electrical equipment
Integrated thermal report printer

·Complete on-line transformer monitoring and bushing monitoring system in conjunction with Hydrocal 1005 and 1008.

·No more off-line testing and shutting down of the transformers to measure the capacitance and the dissipation / power factor.

·Simultaneous measurement of up to six bushing leakage currents.

·Compatibility to various transformer test taps and bushing types.

·The Bushing Monitor, which is an extension package to the Hydrocal 1005 and 1008 is a permanently installed on-line bushing monitoring system. It continuously measures up to six leakage currents, tests the power factor and the capacitance values.

·Moreover, the bushing monitoring system, which has been developed in cooperation with MTE Energy Systems & Services A.Ş., monitors the condition of bushings, the capacitance coupled voltage transformers (CCVT`s) and the free standing CT`s.

·By providing this additional value, MTE Energy Systems & Services A.Ş. answers the fact that bushing failures are considered as one of the major causes for transformer outages.
